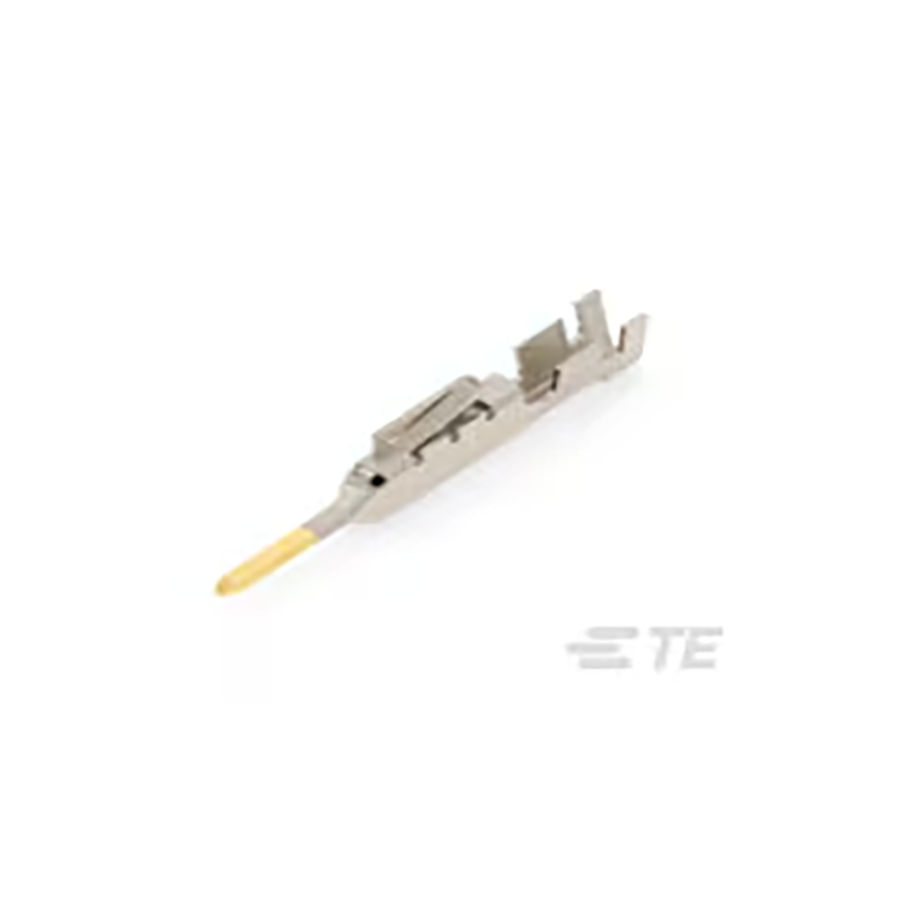

1318109-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1318109-1
Datasheet:
Description:
Headers and Wire Housings Cable Tab Number of Positions:1
| Parameter | Value |
|---|---|
| Length | 21.65 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Tab (Male) |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Tab |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | 1 |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 5 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 1.9 mm |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Post Length | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
